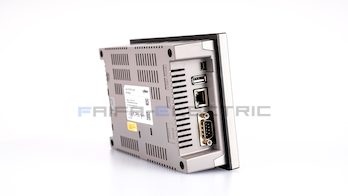

CM-XT07CD-DE

7" TFT, DC24V, 2 Serial, Ethernet

CM-XT07CD-DE

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

CM-XT07CD-DE 10,4″ HMI Touchscreen.  Resistive touchscreen, 10,4″ TFT 4:3, 800×600. Memory 512MByte DDR2 SDRAM. Storage 128MByte SLC NAND Flash. Operating System Windows Embedded Compact 7. 1x Ethernet 10/100, 1x USB, 2x RS-232, 1x 422/485, 1x SD Slot. CE, UL, FCC. Input Power DC 24V. Panel cut 267×207 mm

LCD Size 7"
LCD Type TFT Color
Colors 16.7M colors
Resolution 800 x 480
Backlight LCD
Luminance 600 cd/m²
Backlight Lifetime 50,000 hours
Memory 1 x 128 MB DDR2 SDRAM
Storage 1 x 128 MB SLC NAND Flash
Operating System Windows CE 6.0
Programming Software XpanelDesigner
Interface
 SD Card 1 SD Slot
COM1 RS-232C
COM2 RS-422/485
Ethernet 10/100 BaseT
USB Host 1 Port
Tool Port 1 USB Device
Input Power DC 24 V
Power Consumption 6 W
Item Weight 0.7 kg (1.54 lbs)
Dimension (mm) 185 x 127 x 54
Panel Cut (mm) 177 x 119
Certifications
 FCC ✓
UL ✓
CE ✓
RoHS I ✓
RoHS II ✓
KC ✓
