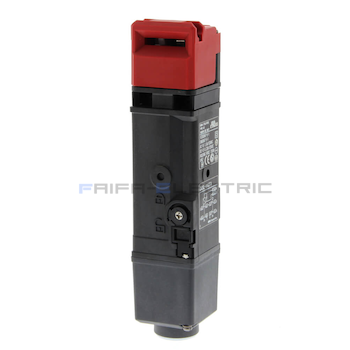

Solenoid Lock-Mechanical Release, Solenoid Voltage: 24VDC, 2NC/1NO + 1NC/1NO, Conduit Opening: G1/2
D4SL-N2NFG-D
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Door switch type | Key-operated |
| Guard-lock | |
| Material housing | Plastic |
| Material head | Resin |
| Ambient temperature (operating) | -10-55 °C |
| Holding force | 1300 N |
| Direction of operation | Adjustable |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 1 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Front + Back |
| Lock/Release key material | Metal |
| Solenoid voltage | 24 V |
| LED indicator | |
| Connection method | Terminal block |
| Cable length | 0 m |
| Degree of protection (IP) | IP67 |
| Conduit size | M20 |
| Number of conduits | 1 |
| Shape | Cuboid |
| Overall length | 179.9 mm |
| Height of sensor | 39 mm |
| Width of sensor | 39 mm |
| Switch without actuator | |
| Lock/Release logic | Power to lock (Solenoid lock) |
