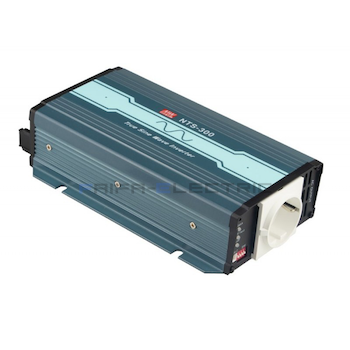

NTS-300-212EU, DC / AC Inverter 10 - 16.5V 300W Euro Type C (CEE 7/16) Socket
NTS-300-212EU
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504408590
|
|
Item number
|
NTS-300-212EU
|
Warranty pack
|
36 Months Bring-In
|
|
Series
|
NTS-300
|
RoHS
|
Compliant
|
|
Description
|
DC-AC True Sine Wave Inverter 300W; Input 12Vdc; Output 200/220/230/240VAC selectable by DIP switches; remote ON/OFF; Fanless design; AC output socket for Europe
|
Packing quantity
|
8
|
|
Application
|
IT AV EN/UL/IEC 62368-1
|
Net weight (gram)
|
1500
|
|
Technology
|
DC/AC
|
||
|
Power Format
|
True Sine Wave
|
||
|
Output Power (W)
|
300
|
||
|
Output Voltage (V)
|
200
220
230
240
|
||
|
Input Voltage (V)
|
12
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
130
|
||
|
Height (mm)
|
55
|
||
|
Depth (mm)
|
210
|
||
|
Control Signals
|
ON/OFF
|
||
|
Dimming Technology
|
No Dimming
|
||
ข้อมูลสินค้า
Mean Well NTS-1200
1200W High Reliable True Sine Wave DC-AC Power Inverter
Features:
- True sine wave output (THD < 3%)
- High surge power up to 2000W
- Temperature controlled cooling fan
- AC output voltage and frequency selectable via DIP switch
- Low power consumption in standby mode (<1.5W)
- -25℃ to +70℃ wide operating temperature
- Power ON-OFF remote control
- Front panel LED indicators for status monitoring
Specifications:
| Output Power | 1200W (Continuous), 1380W (Over Rated), 2000W (Peak Power) |
|---|---|
| Input Voltage | 12V / 24V / 48V DC |
| Output Voltage | 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V AC |
| Efficiency | Up to 93% |
| Protections | Overload, Over-temperature, Short circuit, Reverse polarity, Low/High DC voltage |
| Operating Temperature | -25℃ to +70℃ |
| Communication | Supports RS-232 communication (Cable sold separately) |
| Dimensions | 333 x 184 x 70 mm |
| Weight | 3.3 Kg |
| Warranty | 3 Years |
