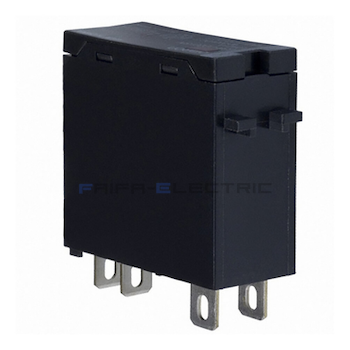

G3R-OA202SZN-UTU 5-24VDC, Solid state relay, plug-in, 5-pin, 1-pole, 2 A, 75-264 VAC
G3R-OA202SZN-UTU 5-24VDC
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Application | Interface |
| Number of phases | 1 |
| Mounting method | With plug-in socket |
| Terminal | Plug-in |
| Complete with socket | |
| LED indicator | |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 75-264 V |
| Rated operational voltage, DC | 75-264 V |
| Operating voltage range, DC | 75-264 V |
| Rated operation current Ie at AC-1 | 2 A |
| Product Height (unpacked) | 29 mm |
| Product Width (unpacked) | 13 mm |
| Product Depth (unpacked) | 28 mm |
| Supply voltage DC | 5-24 V |
| Control current max. | 15 mA |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
| Switching at zero-crossing |
