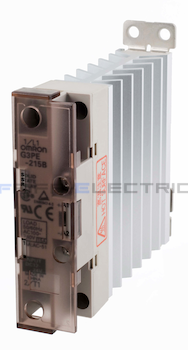

Heater control, Input: 12 to 24 VDC, Output: 100 to 240 VAC, Load current: 15 A
G3PE-215B-3N DC12-24
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Product classification | For 3-phase Heater | ||
|---|---|---|---|
| Number of phases | Three phase | ||
| Number of elements | 3 | ||
| Isolation method | Phototriac | ||
| Zero cross function | Equipped | ||
| Operating indicator | Equipped (Yellow) | ||
| Terminal structure | Screw terminal | ||
| Mounting | DIN track mounting | ||
| Input | Rated voltage | 12 to 24 VDC | |
| Operating voltage range | 9.6 to 30 VDC | ||
| Input current | 10 mA max. (at 24 VDC) | ||
| Operate voltage | 9.6 VDC max. | ||
| Release voltage | 1 VDC min. | ||
| Output | Rated load voltage | 100 to 240 VAC | |
| Load voltage range | 75 to 264 VAC | ||
| Minimum load current | 0.2 A | ||
| Load current | 15 A (at 40 ℃) | ||
| Inrush current resistivity | 150 A (60 Hz 1 cycle) | ||
| Permissible I2**t | 121 A2s | ||
| Applicable load | Load carrying capacity | 5.1 kW (at 200 VAC) | |
| Product | Description |
|---|---|
| Solid state relay, 1 phase, 15A 100-240 VAC, with heat sink, DIN rail mount | |
| Solid-State relay, 3-pole, DIN-track mounting, 15 A, 264 VAC max | |
| Solid state relay, 1 phase, 25A 100-240 VAC, with heat sink, DIN rail mount | |
| Solid-State relay, 2-pole, screw mounting, 25A, 264VAC max | |
| Solid-State relay, 3-pole, DIN-track mounting, 25A, 264 VAC max | |
| Solid-state relay, 1 phase, 25A 100 to 240 VAC, with heat sink, DIN rail mount, non zero cross switching function | |
| Solid state relay, 1-pole, DIN-track mounting, 35 A, 264 VAC max | |
| Solid state relay, 1-pole, DIN-track mounting, 45 A, 264 VAC max | |
| Solid state relay, 1-pole, DIN-track mounting, 15 A, 528 VAC max | |
| Solid state relay, 2-pole, DIN-track mounting, 15 A, 528VAC max | |
| Solid-State relay, 3-pole, screw mounting, 15A, 528VAC max | |
| Solid state relay, 3-pole, DIN-track mounting, 15 A, 528 VAC max | |
| Solid state relay, 1-pole, DIN-track mounting, 25 A, 528 VAC max | |
| Solid state relay, 2-pole, DIN-track mounting, 25A, 528VAC max | |
| Solid-State relay, 3-pole, screw mounting, 25A, 528VAC max | |
| Solid state relay, 3-pole, DIN-track mounting, 25 A, 528 VAC max | |
| Solid state relay, 1-pole, DIN-track mounting, 35 A, 528 VAC max | |
| Solid-State relay, 3-pole, screw mounting, 35A, 528VAC max | |
| Solid state relay, 3-pole, DIN-track mounting, 35 A, 528 VAC max | |
| Solid state relay, 1-pole, DIN-track mounting, 45 A, 528 VAC max | |
| Solid state relay, 2-pole, DIN-track mounting, 35A, 528VAC max | |
| Solid-State relay, 3-pole, screw mounting, 45A, 528VAC max | |
| Solid state relay, 3-pole, DIN-track mounting, 45 A, 528 VAC max |
