PFXSP5600TAD

PFXSP5600TAD Graphic panel Pro-face by Schneider

PFXSP5600TAD

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Display Specifications

Display Type TFT Color LCD
Display Size 12.1”
Resolution 1,024 x 768 pixels (XGA)
Effective Display Area W245.8 x H184.3 mm (W9.68 x H7.26 in.)
Display Colors 262,144 colors
Backlight White LED
 (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight Service Life 50,000 hours or more (continuos operation at 25 °C [77 °F]
before backlight brightness decreases to 50%
Brightness Control 0...100 (Adjusted with touch panel or software)
Touch
Panel		 Type Resistive Film (analog)
Resolution 1,024 x 1,024
Service Life 1 million times or more

Electrical Specifications

Power
Supply		 Rated Input Voltage 12...24 Vdc
Input Voltage Limits 10.8...28.8 Vdc
Voltage Drop 12 Vdc: 1.25 ms or less
24 Vdc: 5 ms or less
Power Consumption
(Primary Power Supply
[including power loss])		 35W or less (display module with box module) 10W or less (display module only)
In-Rush Current 30 A or less
Voltage Endurance 1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance 500 Vdc, 10 MΩ or more (between charging and FG terminals)


Environmental Specifications

International
Safety Standard
Physical
Environmen		 Surrounding
Air Temperature		 0...60 °C (32...140 °F)
Storage Temperature -20...60 °C (-4...140 °F)
Surrounding Air and
Storage Humidity		 10%...90% RH (Non condensing, wet bulb temperature
39 °C [102.2 °F] or less)
Dust 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree For use in Pollution Degree 2 environment
Corrosive Gases Free of corrosive gases
Atmospheric Pressure
(Operating Altitude)		 800...1,114 hPa (2,000 m [6,561 ft] or lower)
Mechanical
Environment		 Vibration
Resistance		 IEC/EN 61131-2 compliant
5...9 Hz Single amplitude 3.5 mm (0.14 in.)
9...150 Hz Fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Shock Resistance IEC/EN 61131-2 compliant
147 m/s2, X, Y, Z directions for 3 times
Electrical
Environment		 Noise Immunity Noise Voltage: 1,000 Vp-p
Pulse Duration: 1 μs
Rise Time: 1 ns
(via noise simulator)
Electrostatic
Discharge Immunity		 Contact Discharge Method: 6 kV (IEC/EN 61000-4-2 Level 3)
NOTE: When using any of the options for this product, make sure to check the specifications for any special conditions or cautions that may apply to this product.


Memory

Application Memory Screen Size:  64MB *SD card
Free Space:  None
Backup Memory NVRAM 320 KB
Control Memory 64KB


Interface Specifications(Box Module)

Serial Interface COM1 Asynchronous Transmission RS-232C/422/485
Data Length 7 or 8 bits
Stop Bit 1 or 2 bits
Parity None, odd, or even
Data Transmission Speed 2,400(1,200)...115,200 bps
Connector D-Sub 9 pin (plug)
Serial Interface COM2 Asynchronous Transmission RS-232C/422/485
Data Length 7 or 8 bits
Stop Bit 1 or 2 bits
Parity None, odd, or even
Data Transmission Speed 2,400(1,200)...115,200 bps,
187,500 bps(MPI)
Connector D-Sub 9 pin (plug)
USB (Type A) Interface Connector B 2.0 (Type A) x 2
Power Supply Voltage 5 Vdc ±5%
Maximum Current Supplied 500 mA/port
Maximum Transmission Distance 5 m (16.4 ft)
USB (mini-B) Interface Connector USB 2.0 (mini-B) x 1
Maximum Transmission Distance 5 m (16.4 ft)
Ethernet Interface Standard IEEE802.3i/IEEE802.3u/IEEE802.3ab,
10BASE-T/100BASE-TX/1000BASE-T
Connector Modular jack (RJ-45) x 2
SD Card Interface SD Card SD Card Slot(System) x 1
SD Card Slot(Storage) x 1
CFast Card Interface CFast Card -
Expansion Unit Interface Expansion Unit Fieldbus Unit x 1
Video Interface DVI-D -
Connector -
Sound Input Interface Sound Input -
Connector -
Sound Output Interface Speaker Output 300 mW (Rated Load: 8 Ω,
Frequency: 1 kHz)
LINE Output Rated load: 10 kΩ or more
Connector 2-piece terminal block (AUX) x 1
AUX Output Interface AUX Output Alarm Output/Buzzer Output
Rated Voltage 24 Vdc
Rated Current 50 mA or less
Connector 2-piece terminal block (AUX) x 1


Structural Specifications

Grounding Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire,
or your country’s applicable standard (same for FG and SG terminals).
Cooling Method Natural air circulation
Structure *1 IP66F, IP67F, TYPE 4X (Indoor Use Only)/13
NOTE: The option is a front USB cover with screw manufactured by Pro-face
 (Model Number PFXZCDCVUS1).
External
Dimensions(Display)		 W315 x H241 x D67 mm (W12.4 x H9.49 x D2.64 in.)
External
Dimensions(Box Module)		 W188 x H131 x D45 mm (W7.4 x H5.16 x D1.77 in.)
Panel Cut
Dimensions		 W301.5 x H227.5 mm (W11.87 x H8.96 in.)*2
Panel thickness area:1.6...5 mm (0.06...0.2 in.)*3
Weight 3.2 kg (7.1 lb) or less (display) 0.9 kg [1.98 lb] or less (box)
  1. The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification.
  2. For dimensional tolerance, everything +1/-0 mm (+0.04/-0 in.) and R in angle are below R3 (R0.12 in.)
  3. Even if the installation wall thickness is within the recommended range for the “Panel Cut Dimensions”, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.


External Dimensions

SP-5600TA

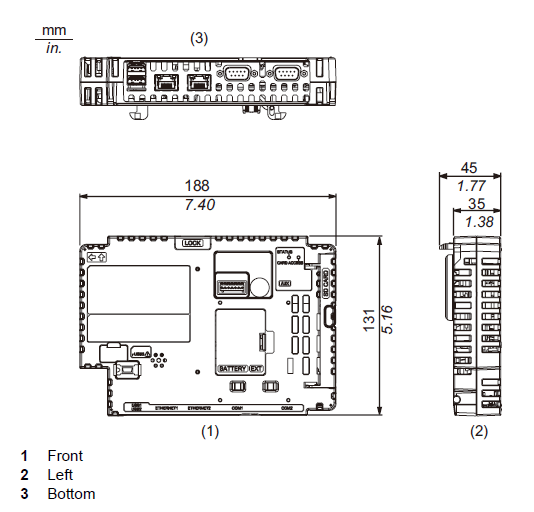

SP-5B10


Panel Cut-out

Note: Even if the installation wall thickness is within the recommended range for the “Panel Cut Dimensions”, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.



ข้อมูลสินค้า

SP5000 Series Lineup / Specifications

Module Configuration


Premium Display Advanced Display Open Box Power Box Standard Box
Industry's top-class display with high display quality and versatile functions Sophisticated display with high display quality Enable to use Windows Applications via HMI Reliable real-time OS installed in HMI
High performance & Extended HMI		 Reliable real-time OS installed in HMI
High performance HMI
SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP SP-5600TA, SP-5600WA,
SP-5500WA, SP-5400WA		 SP-5B41
(End of Sale: Apr 30, 2025)
SP-5B411
SP-5B412		 SP-5B10 SP-5B00
Specifications about Display Module Specifications about Box Module

Display Module

Display Type Product Name Model No. Display
Size		 Display
Colors		 Touch Panel
Type		 Front
USB		 Brightness
Sensor		 Auto
Scaling		 Details
Premium SP-5800WC *1 PFXSP5800WCD 19" Wide
(FWXGA)		 16 million Projected
Capacitive
(multi-touch)		 Yes Yes Yes Datasheet
（PDF）
SP-5700WC *1 PFXSP5700WCD 15" Wide
(FWXGA)
SP-5700TP PFXSP5700TPD 15"
(XGA)		 Analog
Resistive
Film
(multi-touch)
SP-5660TP *2 PFXSP5660TPD 12"
(XGA)
SP-5600TP PFXSP5600TPD 12"
(XGA)
SP-5500TP PFXSP5500TPD 10"
(SVGA)
Advanced SP-5600TA PFXSP5600TAD 12"
(XGA)		 262,144 Analog
Resistive
Film		 No No No
SP-5600WA PFXSP5600WAD 12" Wide
(WXGA)
SP-5500WA PFXSP5500WAD 10" Wide
(WXGA)
SP-5400WA PFXSP5400WAD 7" Wide
(WVGA)

*1SP-5800WC, SP-5700WC and SP-5600TA are not compatible with SP-5B40 (End of Sale: Mar. 30, 2018).

*2SP-5660TP is not compatible with SP-5B10 (Power Box) and SP-5B00 (Standard Box).

Box Module

Box Type Product Name Model No. Windows
Application		 Expansion Unit Sound Output AUX Output Details
Open WES 7 SP-5B41
(End of Sale: Apr 30, 2025) 		 PFXSP5B41* Yes Yes Yes Yes Datasheet
（PDF）
Windows 10
(HMI Runtime not inclueded)		 SP-5B411
Windows 10
(HMI Runtime inclueded)		 SP-5B412
Power SP-5B10 *3 PFXSP5B10 -
Standard SP-5B00 *3 PFXSP5B00 - - -

*3SP-5B10 (Power Box) and SP-5B00 (Standard Box) are not compatible with SP-5660TP.

Display Module x Box Module

Screen Size Product
Name		 Bright-
ness
Sensor/
Auto
Scaling/
Front
USB/
Multi-
touch		 Win-
dows
Apps		 Video/
Sound		 Remov-
able
System		 CFast
(Stor-
age)		 SD
(Stor-
age)		 USB
Type A		 USB
mini B		 SIO Ether
-net		 Rated
Voltage		 Details
19" Wide
(FWXGA)
 SP-5800WC
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5800WC
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5800WC
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
15" Wide
(FWXGA)
 SP-5700WC
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700WC
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700WC
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
15"
(XGA)
 SP-5700TP
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700TP
+
SP-5B411 / SP-5B412		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
Wireless LAN Model
 SP-5660TP
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
 SP-5600TP
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TP
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
 SP-5600TA
+
SP-5B411 / SP-5B412		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
12" Wide
(WXGA)
 SP-5600WA
+
SP-5B411 / SP-5B412		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
10"
(SVGA)
 SP-5500TP
+
SP-5B411 / SP-5B412		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500TP
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
10" Wide
(WXGA)
 SP-5500WA
+
SP-5B41		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
7" Wide
(WVGA)
 SP-5400WA
+
SP-5B411 / SP-5B412		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5400WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5400WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box

สินค้าแน่ะนำ

PFXGP6600TMA
touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Matrix, 2xCOM, 2xETH, USB A & micro B, SD, AC PFXGP6600TMA
PFXGP6600TAD
touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC PFXGP6600TAD
PFXGP6600TAA
touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, AC PFXGP6600TAA
PFXGP6500TMD
touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Matrix, 2xCOM, 2xETH, USB A & micro B, SD, DC PFXGP6500TMD
PFXGP6500TMA
touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Matrix, 2xCOM, 2xETH, USB A & micro B, SD, AC PFXGP6500TMA
PFXGP6500TAD
touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC PFXGP6500TAD
PFXGP6500TAA
touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, AC PFXGP6500TAA
PFXGP6400TAD
touch panel screen, Proface GP6000, 7.5 inch, VGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC PFXGP6400TAD
PFXGP6300TAD
touch panel screen, Proface GP6000, 5.7 inch, VGA, All in one, Analog single, 2xCOM, 2xETH, USB A, USB micro B, SD, DC PFXGP6300TAD
PFXGP6600TADFZ26
touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC, N2 PFXGP6600TADFZ26
PFXGP6600TADC
touch panel screen, Proface GP6000, 12.1 inch, XGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC, coated PFXGP6600TADC
PFXGP6500TADC
touch panel screen, Proface GP6000, 10.4 inch, SVGA, All in one, Analog single, 2xCOM, 2xETH, USB A & micro B, SD, DC, coated PFXGP6500TADC
