BL3-AL-TF-63B34-2-B-D-.35

BL3-AL-TF-63B34-2-B-D-.35, 1/3 HP, 0.25 kW, 208-230/460V, 2P (3600 RPM), TEFC, Rigid Base B14 Flange, Cast Aluminum, 63 Frame, TECHTOP Metric IEC Electric Motor

BL3-AL-TF-63B34-2-B-D-.35

อัตราค่าจัดส่ง

รายละเอียดสินค้า

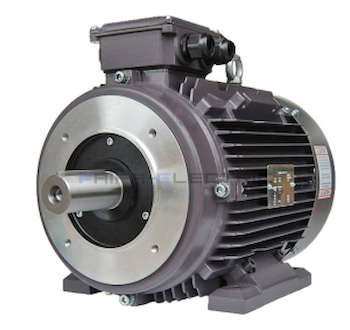

0.25 KW, 1/3 HP, 208-230/460V, 2 Pole (3600 RPM Nominal Speed), TEFC, 1.15 SF, 63 Frame, shielded ball bearings, cast aluminum, rigid base B14 flange, multi-mount removable feet, Metric (IEC) AC induction motor.

  • IP 55 Rated Ingress Protection
  • Inverter Rated-15:1 Constant Torque (MG1 Part 31)
  • Double Lip Bearing Seal on DE & ODE
  • VPI Lap Wound Stator with Tropicalization
  • Dual Oversized Bearing on DE & ODE
  • Multi-mount Removable Feet
  • Corrosion Resistant Hardware
  • Rubber Slinger Protection on Drive End
  • Conduit Box is 90° Rotatable
  • Zerk Regreasable Bearings 160 Frame & Larger
  • F1, F2, F3 Field Convertible
  • Class H Insulated Stator with Class F Leads
  • Terminal Blocks between Conduit Box & Body
  • Increase & Decrease Flanges Available
  • One-Way Brass Condensation Drain on DE & ODE
  • Class 1, Division 2, Groups A, B, C & D Compliant
  • 24 Month Warranty
