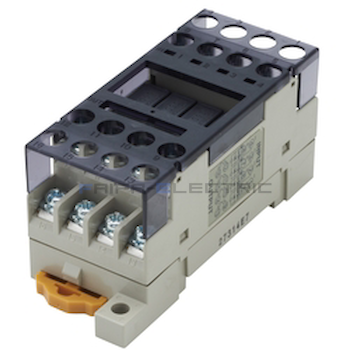

Omron G6D-F4B DC24V Terminal Block Relay 5A 24VDC
G6D-F4B DC24
อัตราค่าจัดส่ง
รายละเอียดสินค้า
last update: December 2, 2021
Main unit
Model with Push-In Plus technology
| Mounted Relay type | Contact form | Model | Operation coil ratings |
|---|---|---|---|
| Mechanical Relay | SPST x 4 (1NO x 4) |
G6D-F4PU | 12 VDC |
| 24 VDC | |||
| Power MOS FET relay | G3DZ-F4PU | 12 VDC | |
| 24 VDC |
Model with Screw Terminal
| Mounted Relay type | Contact form | Model | Operation coil ratings |
|---|---|---|---|
| Mechanical Relay models | SPST x 4 (1NO x 4) |
G6D-F4B | 12 VDC |
| 24 VDC | |||
| Power MOS FET relay | G3DZ-F4B | 12 VDC | |
| 24 VDC |
Accessories (Order Separately)
Replacement Relay
| Applicable Terminal Relay Model | Model | Operation coil ratings |
|---|---|---|
| G6D-F4PU/G6D-F4B | G6D-1A-ASI | 12 VDC |
| 24 VDC | ||
| G3DZ-F4PU/G3DZ-F4B | G3DZ-2R6PL | 12 VDC |
| 24 VDC |
Connection socket (single sales available)
G6D-F4PU/G3DZ-F4PU (Model with Push-In Plus technology)
| Model | Operation coil ratings |
|---|---|
| P6DF-F4PU | 12 VDC |
| 24 VDC |
G6D-F4B/G3DZ-F4B (Models with Screw terminal)
| Model | Operation coil ratings |
|---|---|
| P6DF-F4B | 12 VDC |
| 24 VDC |
Note: 1. Connection socket P6DF-F4B as a single part is not certified by safety standards individually.
2. Single socket which does not mount a relay (with terminal cover)
3. Only the terminal cover is also available separately.
Model: G6D-4-C, Minimum order (quantity): 10
Short Bar (G6D-F4PU/G3DZ-F4PU (Model with Push-In Plus technology))
| Pitch | Applicable models | Number of poles |
Color | Model*1 | Maximum carry current |
|---|---|---|---|---|---|
| 7.75 mm | G6D-F4PU G3DZ-F4PU P6DF-F4PU |
2 | Red (R) Blue (S) Yellow (Y) |
PYDN-7.75-020[] | 20 A |
| 3 | PYDN-7.75-030[] | ||||
| 4 | PYDN-7.75-040[] | ||||
| 20 | PYDN-7.75-200[] |
Note: Use the Short Bars for crossover wiring within one Socket or between Sockets.
*1. Replace the box ([]) in the model number with the code for the covering color. Selection of the box ([]): R=Red, S=Blue, Y=Yellow
last update: December 2, 2021
