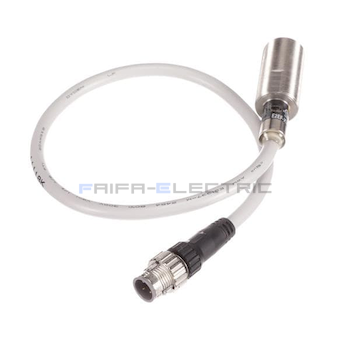

Omron E2EF-X7D1-M1TGJ 0.3M Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Prewired M12 smart click connector model

คุณไม่มีสินค้าในตะกร้า โปรดเลือกหยิบสินค้าที่ต้องการซื้อลงตะกร้า

Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Prewired M12 smart click connector model

E2EF-X7D1-M1TGJ 0.3M

แบรนด์ : Omron

฿ 5000.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Sensing head size	M18
Type	Cylinder type (with screw), Shielded
Power source	DC 2-wire models
Sensing distance	7 mm ±10%
Setting distance	0 to 4.9 mm
Differential distance	15% max. of sensing distance
Sensing object	Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object	Iron 30 x 30 x 1 mm
Response frequency	100 Hz (Average value)
Power supply voltage	10 to 30 VDC ripple (p-p) 10% included
Leakage current	0.8 mA max.
Control output (Switching capacity)	3 to 100 mA
Control output (Residual voltage)	3 V max. (Load current 100 mA max. with cable length of 2 m)
Indicator	Operation indicator (red), Operation setting indicator (green)
Operation mode	NO
Protective circuit	Output short-cut protection Surge suppressor
Ambient temperature (Operating)	-10 to 70 ℃
Ambient temperature (Storage)	-25 to 70 ℃
Ambient humidity (Operating)	35 to 95% RH
Ambient humidity (Storage)	35 to 95% RH
Temperature influence	±20% max. of sensing distance at 23 ℃ in the temperature range of −10 to 70 ℃
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength	Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 1000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC: IP67
Connection method	Prewired M12 smart click connector model (0.3 m)
Weight	Package: Approx. 110 g
Material	Case: Stainless steel (SUS303) Sensing surface: Stainless steel (SUS303) Clamping nuts: Stainless steel (SUS303) Toothed washers: Iron zinc plating Cable: PVC (flame retardant)
Accessories	Instruction manual

Sensing head size

M18

Type

Cylinder type (with screw), Shielded

Power source

DC 2-wire models

Sensing distance

7 mm ±10%

Setting distance

0 to 4.9 mm

Differential distance

15% max. of sensing distance

Sensing object

Ferrous metal (Sensitivity lowers with non-ferrous metals.)

Standard sensing object

Iron 30 x 30 x 1 mm

Response frequency

100 Hz (Average value)

Power supply voltage

10 to 30 VDC ripple (p-p) 10% included

Leakage current

0.8 mA max.

Control output (Switching capacity)

3 to 100 mA

Control output (Residual voltage)

3 V max. (Load current 100 mA max. with cable length of 2 m)

Indicator

Operation indicator (red), Operation setting indicator (green)

Operation mode

Protective circuit

Output short-cut protection
Surge suppressor

Ambient temperature (Operating)

-10 to 70 ℃

Ambient temperature (Storage)

-25 to 70 ℃

Ambient humidity (Operating)

35 to 95% RH

Ambient humidity (Storage)

35 to 95% RH

Temperature influence

±20% max. of sensing distance at 23 ℃ in the temperature range of −10 to 70 ℃

Voltage influence

±1% max. of sensing distance at rated voltage in the rated voltage ±15% range

Insulation resistance

Between charged parts and the case: 5 MΩ min. at 500 VDC

Dielectric strength

Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min

Vibration resistance

Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h

Shock resistance

Destruction: 1000 m/s² 10 times each in X, Y, and Z directions

Degree of protection

IEC: IP67

Connection method

Prewired M12 smart click connector model (0.3 m)

Weight

Package: Approx. 110 g

Material

Case: Stainless steel (SUS303)
Sensing surface: Stainless steel (SUS303)
Clamping nuts: Stainless steel (SUS303)
Toothed washers: Iron zinc plating
Cable: PVC (flame retardant)

Accessories

Instruction manual
